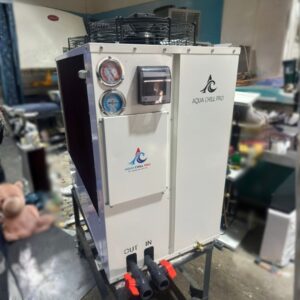

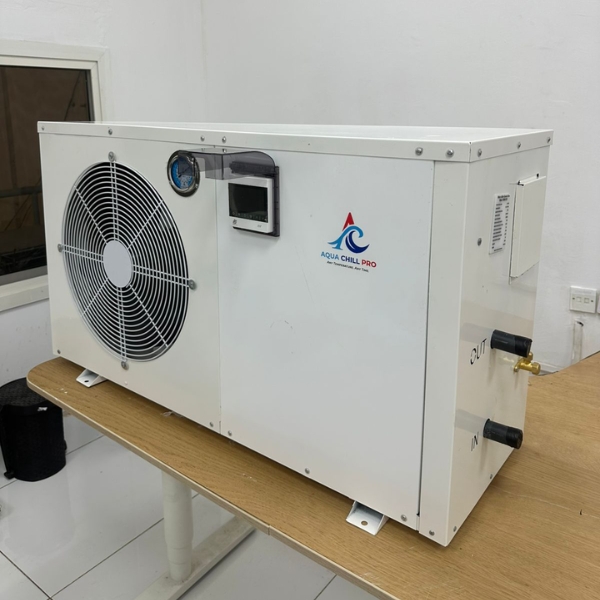

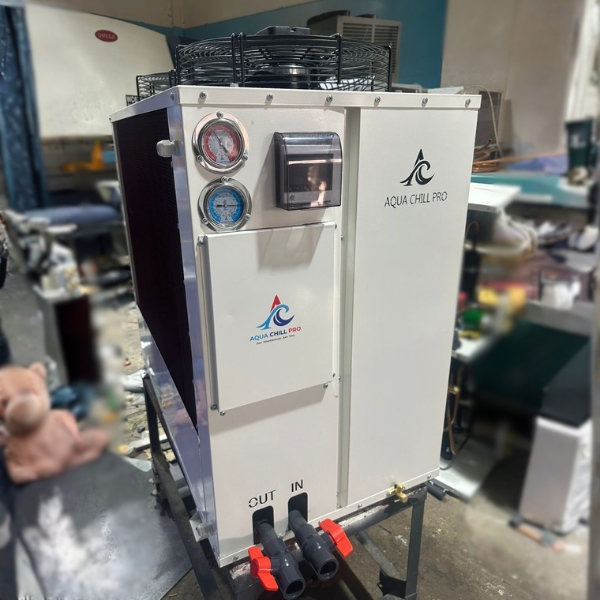

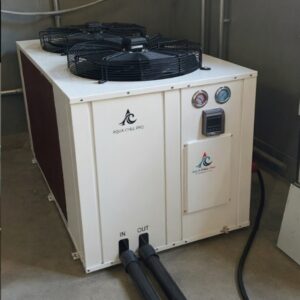

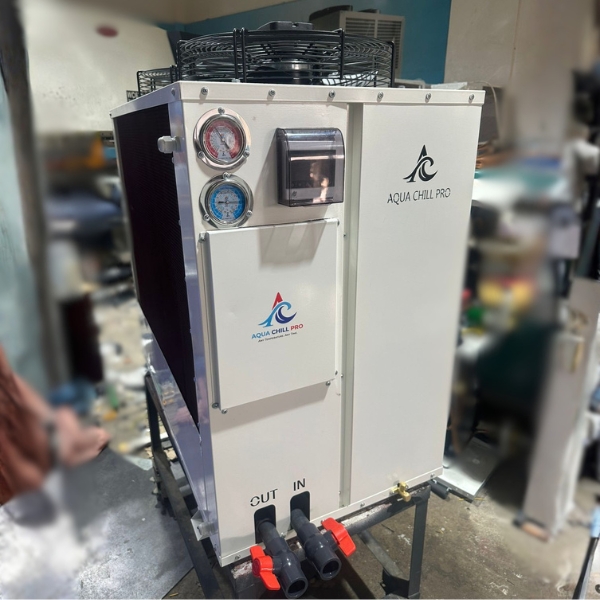

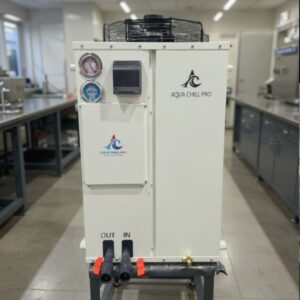

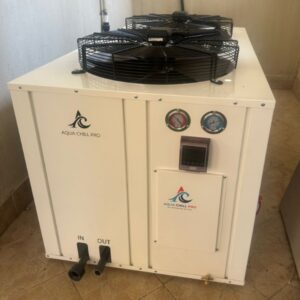

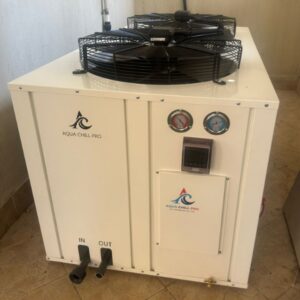

Model: KP-150 && Cooling Only

Water Chiller – 1.5 Tons

extracted_1_3

Installation & Dimensions

  • Water Connection: 1 Inch
  • Unit Dimensions (L × W × H) : 1000 mm ×400 mm ×600 mm
  • Net Weight: Approximately 53 kg



extracted_1_4

Hydraulic Circuit

  • Water Pump: 93W, 100% Copper Wire, 110 TF
  • Evaporator: SS316 Stainless Steel Plate Heat Exchanger
  • Condenser: Copper Tube with Blue Aluminum Fin

extracted_1_5

Refrigeration System

  • Refrigerant: R417a
  • Compressor Type: Rotary
  • Number of Compressors: 1
  • Refrigerant Control: Electronic Expansion Valve

extracted_1_6

Cooling Performance

  • Cooling Capacity: 18,000 BTU/h (Approx. 5.3 kW)
  • Cooling Input Power: 1.6 kW
  • Rated Cooling Current: 7.3 A



extracted_1_8

Air System

  • Fan Quantity: 1
  • Air Flow Direction: Side Discharge
  • Noise Level: < 58 dB(A)

extracted_1_2 (1)

Electrical & Operation

  • Power Supply: 220V–240V / 50–60Hz / 1 Phase
  • Function: Cooling Only
  • Ambient Temperature Range: 5°C – 50°C

Product Overview

Aqua Chill Pro is a high-performance water cooling system designed for versatility—ranging from extreme athletic recovery to cooling domestic water tanks in hot climates.

Core Value Proposition :

The Aqua Chill Pro is built to handle high ambient temperatures (up to 50°C+), making it a favorite in regions like the Middle East. It focuses on rapid cooling,

energy efficiency, and durability against corrosion.

Key Features & Benefits:

  • Rapid Cooling Technology: Capable of chilling water down to 3°C (37°F) quickly. Many models include a “Boost” mode for initial cooling of large volumes.
  • Titanium Heat Exchanger: Uses a pure titanium evaporator, which is crucial because it prevents corrosion from salt, chlorine, or hard water, ensuring a long lifespan.
  • Eco-Friendly Performance: Modern units use high-efficiency refrigerants (like R410A or R134a) to maximize cooling while minimizing power consumption.
  • Weatherproof Build: Designed with a powder-coated steel or heavy-duty plastic casing to withstand outdoor installation and UV exposure.
  • Smart Control: Equipped with a digital LED display and often Wi-Fi/App connectivity, allowing you to set schedules and monitor temperatures from your phone.

Technical Specifications (Typical Pro Series) :

  • FeatureDescription

    Cooling Power

    Options ranging from 0.5 HP to 1.5 HP for residential/personal use.

    Noise Level

    Silent-run technology (approx. 40–50 dB).

    Water Type

    Compatible with fresh water, salt water, and chlorinated water.

    Installation

    Plug-and-play design with standard hose connectors.

    Safety

    Built-in auto-shutoff for overheating or low water flow
